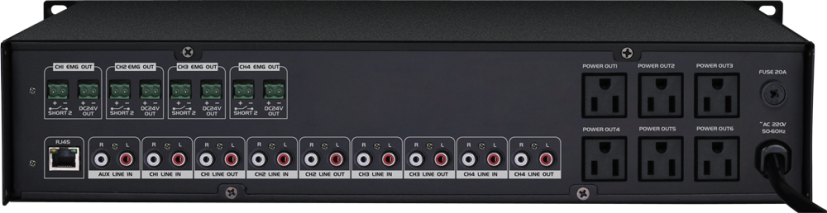

Four-channel IP network vod terminal bcp-v8004

Standard with 2 10/100mrj45 network switch interface, support LAN and wan

3 "high brightness LCD screen (resolution 128*64), with light touch button control, easy to understand the operation

With 1 channel local line input, 1 channel microphone input interface, 1 channel audio output

1 circuit normal short circuit output function, 1 circuit fire emergency output, at the same time output 24V strong cutting function;

Equipped with infrared remote control, remote control terminal functions

With the program on demand function, the program can be on demand server freely through the server software, terminal keyboard and remote control

USB interface, support USB on demand program,

Audio file support MP3 format;

With 2 - way power management, can achieve timing or manual open

With 3 levels of priority function, alarm for the highest priority, network audio playback for the second level, local playback for the third level

Equipped with terminal feeding speech function, the voice of this terminal can be fed to one or more other designated terminals through the network;

With standby time setting function, the time setting range is between 1-99 minutes, the user can be free according to the needs.

Technical parameters:

Network interface: 2 sets of RJ45

Transmission rate: 100Mbps/10Mbps

Support protocols: TCP/IP,UDP,IGMP(multicast)

Li audio format: MP3

Sampling rate: 8K ~ 48K

AUX sensitivity: -12db

Frequency response: 50Hz - 16KHz

Harmonic distortion: THD less than 0.1%

B signal to noise ratio: more than 70dB

S working temperature: - 5 ℃ ~ 60 ℃

Working humidity: 20% ~ 80% relative humidity

Dimension: 485x405x88mm
