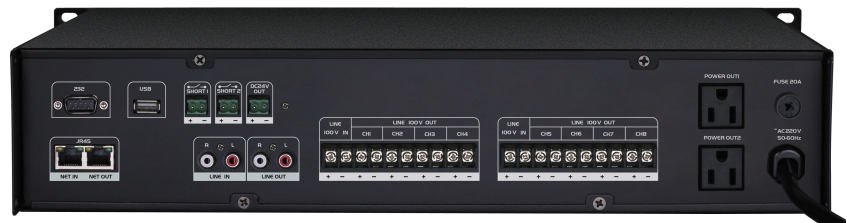

8. IP network on demand terminal of partition BCP-V8001A

Standard with a 10/100mrj45 network switch interface, support LAN and wan

Built with 4 independent IP control modules, 4 sets of audio sources can be played independently without interference

With 6 channels of electrical control, each module can be timed or manually open the circuit power supply and at the same time open the sixth power supply

With 2 levels of priority, network alarm is the highest priority, followed by the network background music

B audio file support MP3;

B 2U standard case design, aluminum alloy panel, beautiful and practical

Technical parameters:

Network interface: 1 set of RJ45

Transmission rate: 100Mbps/10Mbps

Support protocols: TCP/IP,UDP,IGMP(multicast)

Li audio format: MP3

Sampling rate: 8K ~ 48K

S working temperature: - 5 ℃ ~ 60 ℃

Working humidity: 20% ~ 80% relative humidity

Dimension: 485x405x88mm
