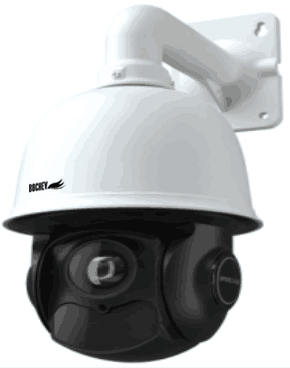

2 million 100 m infrared mini network high speed ball BCN-VP

Performance 1/2.8 Progressive CMOS 18x optical zoom Supports auto iris, auto focus, auto white balance, backlight compensation, 3D digital noise reduction Full HD network video output: 1920*1080@30fps image compression format H.265/H. 264

Details

Performance
1/2.8” Progressive CMOS
18x optical zoom
Supports auto iris, auto focus, auto white balance, backlight compensation, 3D digital noise reduction
Full HD network video output: 1920*1080@30fps
image compression format H.265/H. 264
support SD card local storage, network remote storage
Web graphical user menu
Adopt high-efficiency array infrared light-assisted illumination, low power consumption, illumination distance 50-70m
infrared light and magnification distance matching algorithm, adjust the brightness of infrared light according to magnification and distance Angle to make the image reach the ideal state
Built-in heat treatment device, reduce the temperature of the inner cavity of the ball machine, prevent fogging of the inner cover of the ball machine.
Support 3D intelligent positioning function. With DVR/client software/IE, it can realize click tracking and amplification to
support power-off status. Memory function, automatically return to the PTZ and lens status before power off after power-on.
Lightning, anti-surge, anti-surge, IP66 protection level
Support 1 channel audio input and 1 channel audio output
precision motor drive, responsive, running smooth, precision deviation is less than 0.1 degrees, jitter-free image at any speed
in the horizontal direction 360 ° continuous rotation, vertical 0 ° -90 °, without monitoring Zone
level preset speeds of up to 160 ° / s, vertical speed preset point up 50 ° / s
level keying speed of 0.1 ° - 120 ° / s, vertical keying speed of 0.1 ° - 50 ° / s
support 256 preset positions
Support 8 cruise scans, each can add 16 preset points
Support 4 pattern scans, each path records time 3 minutes
Supports guard position function

technical parameters

Project/parameter		BCN-VP82MA
Movement	Image Sensor	1/2.9” Progressive Scan CMOS
	Effective Pixels	2 million pixels
	White balance	automatic / manual
	Gain control	automatic / manual
	3D noise reduction	stand by
	Signal to noise ratio	Not less than 52dB
	BLC	stand by
	Electronic shutter	25 frames: 1/25~1/100,000Sec
	Electronic shutter	30 frames: 1/30~1/100,000Sec
	Day and night mode	automatic / manual
	Focus mode	automatic / manual
Lens	focal length	4.5-97mm
	Horizontal viewing angle	W: 50.2°~ T: 2.9°
	aperture	1.5~2.7
Features	Horizontal range	360° continuous rotation
	Horizontal speed	Horizontal keying speed: 0.1° -120°/s
	Horizontal speed	Horizontal preset speed: 240°/s
	Vertical range	0-90 ^O
	Vertical speed	Vertical keying speed: 0.1° -90°/s
	Vertical speed	Vertical preset speed: 200°/S
	Proportional zoom	stand by
	Preset number of bits	256
	cruise	8 bars, each can add 16 preset positions
	scanning	2 pieces
	Trajectory	4, each recording time is 3 minutes
	Timed task	stand by
	Watch position	stand by
	Power failure memory	stand by
Infrared function	Infrared illumination distance	80~100 meters
Infrared function	Infrared control	The brightness and angle of the infrared light are adjusted according to the scene.
The internet	Maximum image size	1920*1080
	Multi-stream frame rate	Main stream: 1920x1080 (1~30fps) / 1280x720 (1~30fps)
		Substream: D1 (1~30fps) / CIF (1~30fps)
		Third stream: D1 (1~30fps) / CIF (1~30fps) / 480x240 (1~30fps)
	Video compression	H.265/H.264/MJPEG
	Audio compression network protocol	G.711a/G.711u
	Network protocol	TCP/IP, UDP, DHCP, UPnP, DDNS, NTP, RTSP, SMTP, FTP, PPPOE, IPv4
	Preview the number of videos simultaneously	Up to 10 channels
system integration	Alarm input	not support
	Alarm Output	not support
	Network Interface	Built-in RJ45 network port, supporting 10M/100M network data
	SD card interface	Built-in Micro SD card slot for manual recording
	Application programming interface	API, SDK, Onvif, GB/T28181
	Client	Web4.0
General specification	menu	Chinese-English
	power supply	DC12V 4000mA
	working environment	-35-60 ° C, humidity less than 90%
	Protection level	IP66, IK10, TVS6000V lightning protection, anti-surge, anti-surge
