2 million 120 meters infrared network high speed ball BCN-CP
Performance 1/2.9 Progressive CMOS 18 / 24x optical zoom Supports auto iris, auto focus, auto white balance, backlight compensation, 3D digital noise reduction Full HD network video output: 1920*1080@30fps image compression format H.265/ H
Details

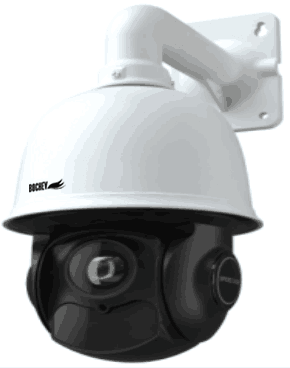

2 million 120 meters infrared network high speed ball BCN-CP


Performance
1/2.9” Progressive CMOS
18 / 24x optical zoom
Supports auto iris, auto focus, auto white balance, backlight compensation, 3D digital noise reduction
Full HD network video output: 1920*1080@30fps
image compression format H.265/ H.264
supports SD card local storage, network remote storage
Web graphical user menu
Adopt high-efficiency infrared array illumination, low power consumption, illumination distance up to 100-120m
infrared light and magnification distance matching algorithm, adjust the brightness of infrared light according to magnification and distance Angle to make the image reach the ideal state
Built-in heat treatment device, reduce the temperature of the inner cavity of the ball machine, prevent fogging of the inner cover of the ball machine.
Support 3D intelligent positioning function. With DVR/client software/IE, it can realize click tracking and amplification to
support power-off status. Memory function, automatically return to the PTZ and lens status before power off after power-on.
Lightning, anti-surge, anti-surge, IP66 protection level
Support 1 channel audio input and 1 channel audio output
precision motor drive, responsive, running smooth, precision deviation is less than 0.1 degrees, jitter-free image at any speed
in the horizontal direction 360 ° continuous rotation, vertical 0 ° -90 °, no blind spot monitoring
The horizontal preset speed is up to 240°/s, the vertical preset speed is up to 200°/s, the
horizontal keying speed is 0.1° -120°/s, and the vertical keying speed is 0.1° -90°/s.
Support 360 preset positions, with preset point video freeze function
Support 8 cruise scans, each can add 16 preset points
Support 4 pattern scans, each path records time 3 minutes
Supports watch position function
Support alarm function, built-in 1 channel alarm input and 1 channel alarm output, support alarm linkage function
technical parameters
Project/parameter BCN-CP82PN
Movement Image Sensor 1/2.9” Progressive Scan CMOS 1/2.8” Progressive Scan CMOS
Effective Pixels 2 million pixels
White balance automatic / manual
Gain control automatic / manual
3D noise reduction stand by
Signal to noise ratio Not less than 52dB
BLC stand by
Electronic shutter 25 frames: 1/25~1/100,000Sec
30 frames: 1/30~1/100,000Sec
Day and night mode automatic / manual
Focus mode automatic / manual
Lens focal length 5.4-97mm 4.6-100mm
Horizontal viewing angle W: 50.2 ° ~ T: 2.9 °
aperture 1.6-3.5
Features Horizontal range 360° continuous rotation
Horizontal speed Horizontal keying speed: 0.1°-120°/s
Horizontal preset speed: 240°/s
Vertical range 0-90 O
Vertical speed Vertical keying speed: 0.1°-90°/s
Vertical preset speed: 200°/S
Proportional zoom stand by
Preset number of bits 360
cruise 8 bars, each can add 16 preset positions
scanning 2 pieces
Trajectory 4, each recording time is 3 minutes
Timed task stand by
Watch position stand by
Power failure memory stand by
Infrared function Infrared illumination distance 100 meters (120)
Infrared control The brightness and angle of the infrared light are adjusted according to the scene.
The internet Maximum image size 1920*1080
Resolution Main stream: 1920*1080, 1280*720
Substream: 704*576, 352*288
Third stream: 480*240, 352*288, 704*576
Video compression H.265/H.264/MJPEG
Audio compression network protocol G.711a/G.711u
Network protocol TCP/IP, UDP, DHCP, UPnP, DDNS, NTP, RTSP, SMTP, FTP, PPPOE, IPv4
Preview the number of videos simultaneously Up to 10 channels
system integration Audio input and output stand by
Alarm input 1 way switch input (5~12VDC)
Alarm Output 1 way, support alarm linkage (preset position, smart capture, upload FTP, mail linkage)
Network Interface Built-in RJ45 network port, supporting 10M/100M network data
SD card interface Built-in Micro SD card slot for manual recording
Application programming interface API, SDK, Onvif, GB/T28181
Client Web4.0
General specification menu Chinese-English
power supply DC24V3000mA
working environment -20-60 ° C, humidity less than 90%
Protection level IP66, IK10, TVS6000V lightning protection, anti-surge, anti-surge
