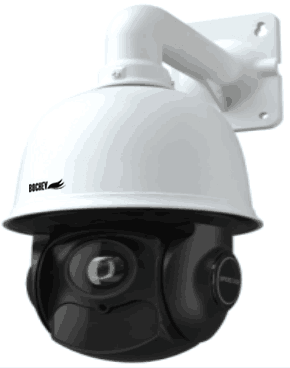

3 million 120 meters infrared network high speed ball BCN-CP

Performance 1/2.8 Progressive CMOS 24x optical zoom Supports auto iris, auto focus, auto white balance, backlight compensation, 3D digital noise reduction Full HD network video output: 2048*1536@30fps HD analog video output: AHD or TVI use

Details

Performance
1/2.8” Progressive CMOS
24x optical zoom
Supports auto iris, auto focus, auto white balance, backlight compensation, 3D digital noise reduction
Full HD network video output: 2048*1536@30fps
HD analog video output: AHD or TVI users Optional, 1920*1080@30fps
image compression format H.265/H.264
supports SD card local storage, network remote storage
Web graphical user menu
High-efficiency infrared array illumination, low power consumption, illumination distance up to 90m
infrared light and magnification The distance matching algorithm adjusts the brightness and angle of the infrared light according to the magnification and distance to make the image reach the ideal state. The
built-in heat treatment device reduces the temperature of the inner cavity of the ball machine, prevents the fog of the inner cover of the ball machine,
supports the three-dimensional intelligent positioning function, and cooperates with the NVR/client. Software/IE can realize click tracking and amplification
Support power-off state memory function, automatically return to the PTZ and lens state before power-off after power-on.
Lightning, anti-surge, anti-surge, IP66 protection level
supports 1 channel audio input and an audio output
precision motor drive, responsive, smooth operation, the deviation is less than 0.1 degree accuracy, at any speed without shaking the image
horizontally 360 ° continuous rotation, vertical 0 ° -90 °, no blind spot monitoring
level preset speed up to 240 ° / s, vertical speed up to preset point 200 ° / s
level keying speed of 0.1 ° -120 °/s, vertical keying speed is 0.1° -90°/s
supports 360 preset positions, and has preset point video freezing function.
Supports 8 cruise scanning, each can add 16 preset points.
Support 4 pattern scanning, each path records time 3 minutes
Supports the guard position function
Supports the alarm function, built-in 1 channel alarm input and 1 channel alarm output, supports the alarm linkage function
technical parameters

Project/parameter		BCN-CP83PN
Movement	Image Sensor	1/2.8” Progressive Scan CMOS
	Effective Pixels	3 million pixels
	White balance	automatic / manual
	Gain control	automatic / manual
	3D noise reduction	stand by
	Signal to noise ratio	Not less than 52dB
	BLC	stand by
	Electronic shutter	25 frames: 1/25~1/100,000Sec
	Electronic shutter	30 frames: 1/30~1/100,000Sec
	Day and night mode	automatic / manual
	Focus mode	automatic / manual
Lens	focal length	4.6-110mm
	Horizontal viewing angle	W: 58.6°~T: 3.6°
	aperture	1.6~3.5
Features	Horizontal range	360° continuous rotation
	Horizontal speed	Horizontal keying speed: 0.5°-80°/s
	Horizontal speed	Horizontal preset speed: 150°/s
	Vertical range	0-93°
	Vertical speed	Vertical keying speed: 0.5°-70°/s
	Vertical speed	Vertical preset speed: 150°/S
	Proportional zoom	stand by
	Preset number of bits	360
	cruise	8 bars, each can add 16 preset positions
	scanning	2 pieces
	Trajectory	4, each recording time is 3 minutes
	Timed task	stand by
	Watch position	stand by
	Power failure memory	stand by
Infrared function	Infrared illumination distance	90 meters (120)
Infrared function	Infrared control	The brightness and angle of the infrared light are adjusted according to the scene.
The internet	Maximum image size	2048×1536
	Resolution	Main stream: 3MP (1~30fps) 1080P (1~30fps)/720P (1~30fps)
		Substream: D1 (1~30fps)/CIF (1~30fps)
		The third stream: D1 (1~30fps) / CIF (1~30fps) / 480x240 (1~30fps)
	Video compression	H.265/H.264/MJPEG
	Audio compression network protocol	G.711a/G.711u
	Network protocol	TCP/IP, UDP, DHCP, UPnP, DDNS, NTP, RTSP, SMTP, FTP, PPPOE, IPv4
	Preview the number of videos simultaneously	Up to 10 channels
Analog HD	Maximum image size	1920*1080
Analog HD	Video output	AHD or TVI user optional
system integration	Alarm input	4-channel switch input (5~12VDC)
	Alarm Output	1 way, support alarm linkage (preset position, smart capture, upload FTP, mail linkage)
	Network Interface	Built-in RJ45 network port, supporting 10M/100M network data
	SD card interface	Built-in Micro SD card slot for manual recording
	Application programming interface	API, SDK, Onvif, GB/T28181
	Analog HD output	BNC
	Client	Web4.0
General specification	menu	Chinese-English
	power supply	DC24V 3000mA
	working environment	-20-60 ° C, humidity less than 90%
	Protection level	IP66, IK10, TVS6000V lightning protection, anti-surge, anti-surge
