Network control keyboard BCN-NKB01D
Product Features Support WEB configuration mode Support seamless integration with NVMS-5000 platform Supports playback control of decoder Supports network dome mode Supports macro recording technical parameters model BCN-NKB01D Local param
Details

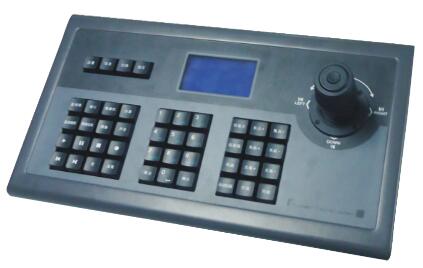

Network control keyboard BCN-NKB01D


Product Features
Support WEB configuration mode
Support seamless integration with NVMS-5000 platform
Supports playback control of decoder
Supports network dome mode
Supports macro recording
technical parameters
model BCN-NKB01D
Local parameter
Local display LCD display, support Chinese menu
Joystick Four-dimensional rocker
button Four functional areas
Network parameters
Network Interface 1 RJ45 10/100M adaptive Ethernet port
Control mode Platform mode or network dome mode
Network management Support to modify keyboard configuration through WEB, support software upgrade through WEB
Serial port parameter
Serial interface 1 RS485 standard serial interface, one RS232 standard serial interface
Baud rate 1200bps, 2400bps, 4800bps, 9600bps, 19200bps
Control mode Ball mode
Other parameters
power supply DC12V
Power consumption ≤8W
Operating temperature -10 ° C ~ 60 ° C
Working humidity 10%~90%
size 420( L ) × 260( W ) × 170 ( H ) mm
weight 2.8kg
