Network control keyboard BCN-NKB02D
Product Features Local display: 7-inch 800X600 resolution TFT LCD screen. Support for four-dimensional rockers. Support for external display devices. Support USB mouse operation. Support seamless integration with the NVMS-5000 platform. Su
Details

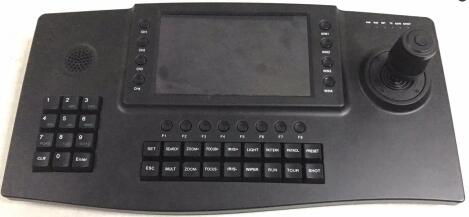

Network control keyboard BCN-NKB02D


Product Features
Local display: 7-inch 800X600 resolution TFT LCD screen.
Support for four-dimensional rockers.
Support for external display devices.
Support USB mouse operation.
Support seamless integration with the NVMS-5000 platform.
Support the pan/tilt control of the dome camera, preset point, cruise, scan configuration and call, independent wiper, light shortcut operation keys.
Support for decoding on the wall control.
Support video playback control.
Technical Parameters
model BCN-NKB02D
Local parameter
Local display 7-inch LCD display, support Chinese menu
Joystick Four-dimensional rocker
Upgrade management Support upgrade software through U disk
Network parameters
Network Interface 1 RJ45 10/100M adaptive Ethernet port
Control mode Platform mode
Interface parameter
Serial interface 1 RS485 standard serial interface, one RS232 standard serial interface
USB interface 1 USB2.0
HDMI 1 HDMI interface
Other parameters
power supply DC12V/2A
Operating temperature 0°C～55°C
Working humidity 20%~80% non-condensing
size 490( L ) × 265( W ) × 170 ( H ) mm
weight 3kg
