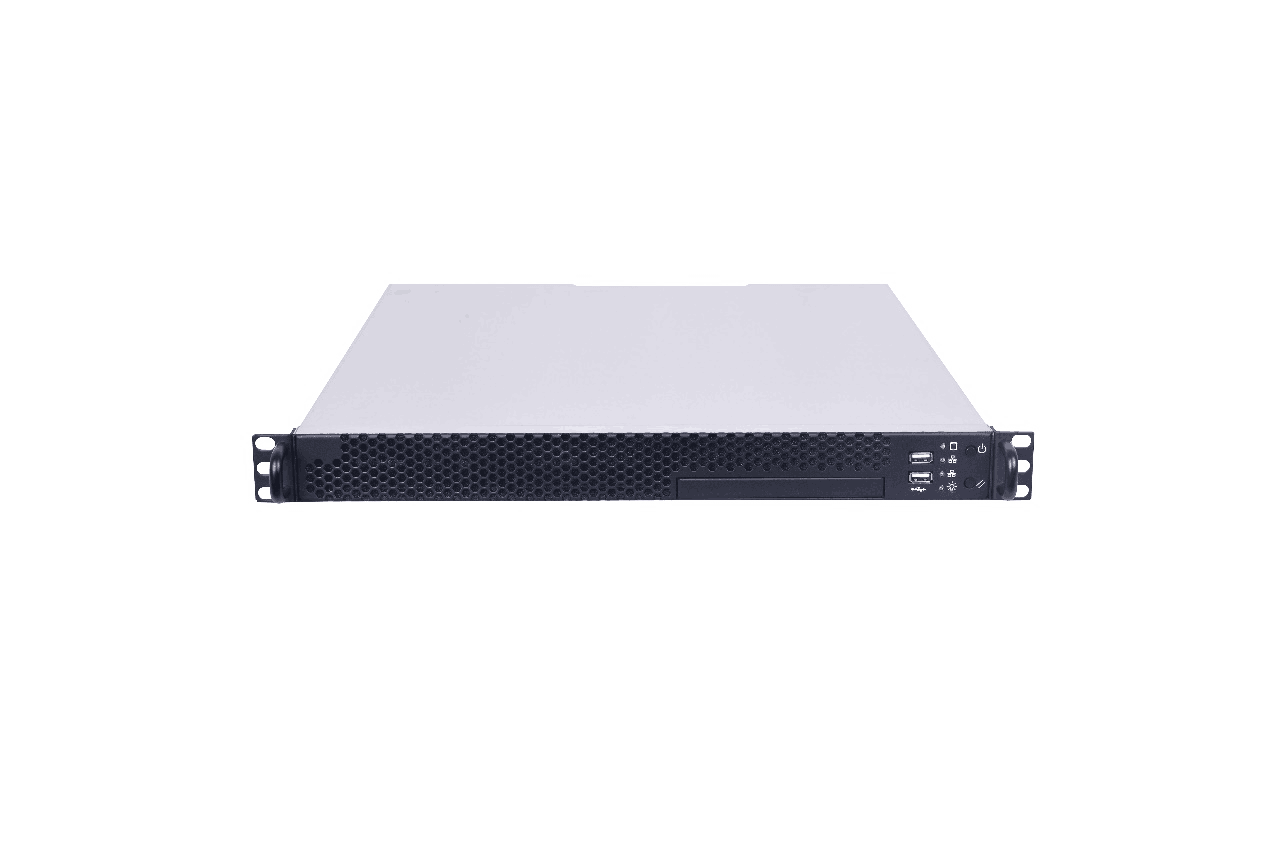

Centralized management server (including software) BCN-CMS10

Product features High-performance X86 hardware platform, stable and reliable Software factory pre-installed, All-in-One simplified deployment Supports access to the entire series of products and mainstream manufacturers, supports ONVIF pro

Details

Product features
High-performance X86 hardware platform, stable and reliable
Software factory pre-installed, All-in-One simplified deployment
Supports access to the entire series of products and mainstream manufacturers, supports ONVIF protocol access
Support devices actively report
support IP, IP segment , domain name and serial number added
Support device automatic search discovery and quick add
Support standard, monospace and custom segmentation preview, support instant playback
Support corridor mode, support fisheye
support PTZ direction, focus control, support presets and cruise routes Set up and call
Support voice monitoring, voice intercom and voice broadcast
Support device and center storage video retrieval, playback and download
Support video search and playback by time, channel, event, label
Support time slice playback
support video clip backup, support press Time and event backup
Support IPC SD card video retrieval, playback and download
Support multi-level picture and online electronic map
Support TV wall management, support splicing, windowing, roaming and alarm on the wall, support plan and channel group polling
support rich alarm type and interlock operation
support grade, and subregional User rights management
support for log management, support devices and nodes offline and alarm status announcement
supports SDK / OCX development package for customers to integrate applications
support GB / T 28181-2011, DB31 / T 889-2015, DB33 / T 629-2011 agreement
Support alarm host, access control/attendance, dynamic ring monitoring, one-button alarm system access
Support Android/iOS version mobile phone client
technical parameters

Main processor	Intel Core Processor I3-6100 2C/4T 3.7GHz 3M HD Graphics P530/51W
operating system	Ubuntu Linux operating system
RAM	4GB DDR4 ECC, up to 64GB
Network card	Integrated InteI210-AT dual Gigabit Fast Ethernet server card
hard disk	1 X Kingston SSD/120G/SATA/6Gb/s/2.5 inch/SUV400S37, support 3 non-hot swap 3.5/2.5 inch hard drives
PCI expansion slot	1PCI-E3.08(x4); 1PCI-E3.08; 1PCI-E3.016(X8) interface
management	Integrated BMC module, support IPMI2.0, provide a 10/100 Mbps RJ45 management network port, integrate KVM, support remote management
External device interface	1 VGA display interface, 6 USB ports (front panel 2xUSB2.0, rear panel 2xUSB2.0 and 2xUSB3.0), 2 network interfaces, 1 COM, 1 remote management port
Management device type	IPC, DVS/DVR/NVR, decoder
Maximum number of management channels	30000 road
Maximum number of managed NVRs	1024 sets
Maximum management decoding channel	256 roads
Maximum number of managed streaming servers	32 units
Maximum number of managed streaming media storage	128 units
Device group	stand by
Maximum number of users	1024
Number of concurrent online users	256
User rights	Users assign permissions by role
Live preview	Maximum 100 real-time preview, support for polling
PTZ control	Support direction and focus control, preset position and cruise route settings and calls
Storage method	Support IP SAN/streaming storage
Video mode	Scheduled recording, manual recording, alarm recording
Video search	Support multi-channel synchronous retrieval playback
power supply	100~240V-6~3A /50~60Hz
power	≤300W (including hard disk)
Working temperature	Operating from 10°C to 35°C, non-operating –40°C to +70°C ambient
Relative humidity	95% non-operating, non-condensing at 25 ° C to 30 ° C
noise	In the operation mode, the sound pressure is measured at the lateral position <50dBA; when the ambient temperature is <28°C, the measured sound intensity is 6.2BA.
weight	About 12KG (standard / gross weight)
Size (mm)	430 x 487 x 44 (Wx Dx H)
Installation method	Standard 19" rack mount
