Streaming Media Server BCN-FVR1002P
Product features: High-performance X86 hardware platform, stable and reliable Software factory pre-installed, All-in-One simplified deployment Supports the same series of products and mainstream manufacturers equipment access, supports ONV
Details

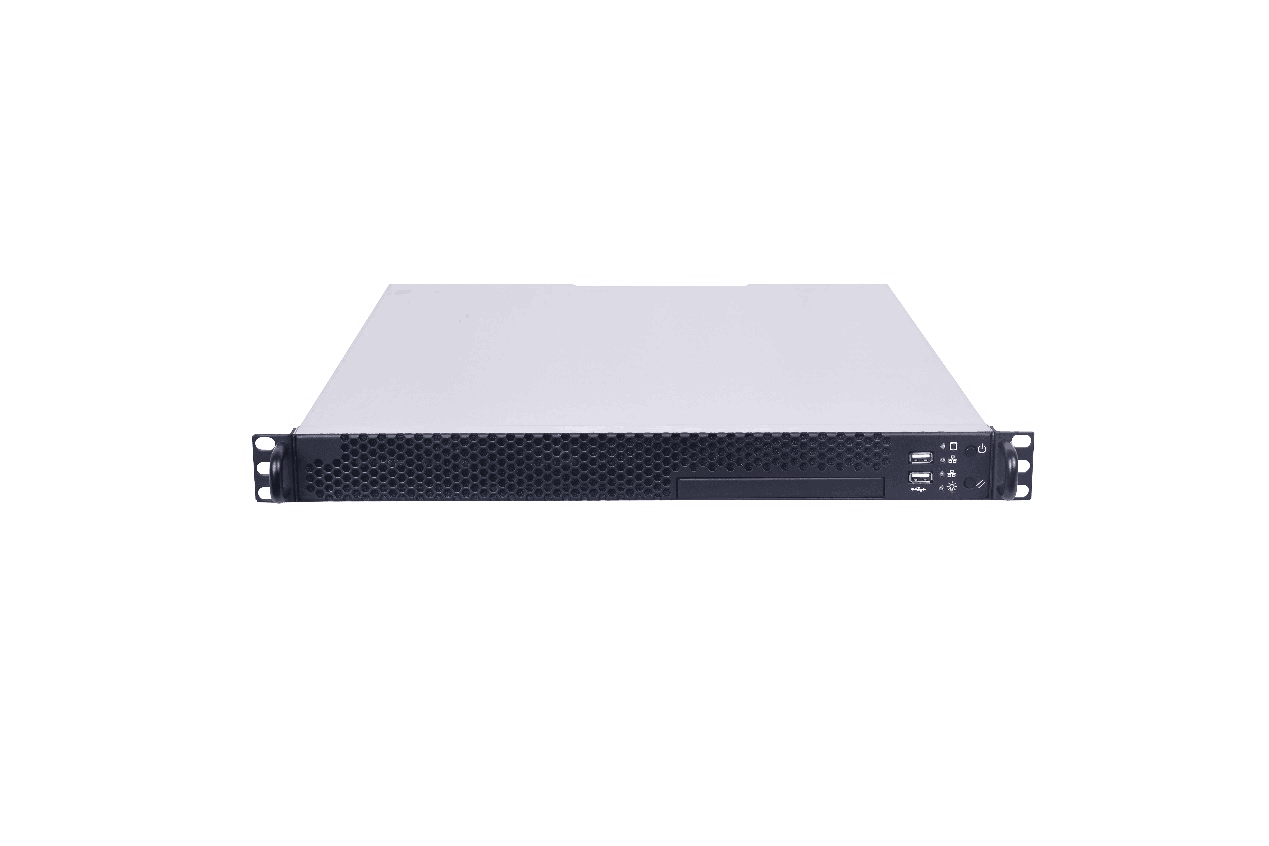

Streaming Media Server BCN-FVR1002P


Product features:
High-performance X86 hardware platform, stable and reliable
Software factory pre-installed, All-in-One simplified deployment
Supports the same series of products and mainstream manufacturers' equipment access, supports ONVIF protocol access
Support equipment actively reports
support IP, IP Segment, domain name and serial number added
Support device automatic search discovery and fast add
Single device supports 600Mbps streaming media access and forwarding
Four Gigabit Ethernet ports, improve network redundancy capability

Technical parameters
Main processor Intel Xeon Processor E3-1225V5 4C/4T 3.3GHz 8M HD Graphics P530/80W
operating system Ubuntu Linux server system
RAM 8GB DDR4 ECC, up to 64GB
Network card 1 X Dual/Gigabit Copper/I350-T2 + Integrated InteI210-AT Dual Gigabit Fast Ethernet Server Card
hard disk 1 X Kingston SSD/120G/SATA/6Gb/s/2.5 inch/SUV400S37, support 3 non-hot swap 3.5/2.5 inch hard drives
PCI expansion slot 1*PCI-E3.0*8; 1*PCI-E3.0*8(X4); 1*PCI-E3.0*16(X8);
management Integrated BMC module, support IPMI2.0, provide a 10/100 Mbps RJ45 management network port, integrate KVM, support remote management
External device interface 1 VGA display interface, 6 USB ports (front panel 2xUSB2.0, rear panel 2xUSB2.0 and 2xUSB3.0), 4 network interfaces, 1 COM, 1 remote management port, 5.1 channel interface
Access streaming media bandwidth 600Mbps
Output streaming bandwidth 600Mbps
power supply 100~240V-6~3A /50~60Hz
power ≤300W (including hard disk)
Working temperature Operating from 10°C to 35°C, non-operating –40°C to +70°C ambient
Relative humidity 95% non-operating, non-condensing at 25 ° C to 30 ° C
noise In the operation mode, the sound pressure is measured at the lateral position <50dBA; when the ambient temperature is <28°C, the measured sound intensity is 6.2BA.
weight About 12KG (standard / gross weight)
Size (mm) 430 x 487 x 44 (Wx Dx H)
Installation method Standard 19" rack mount
