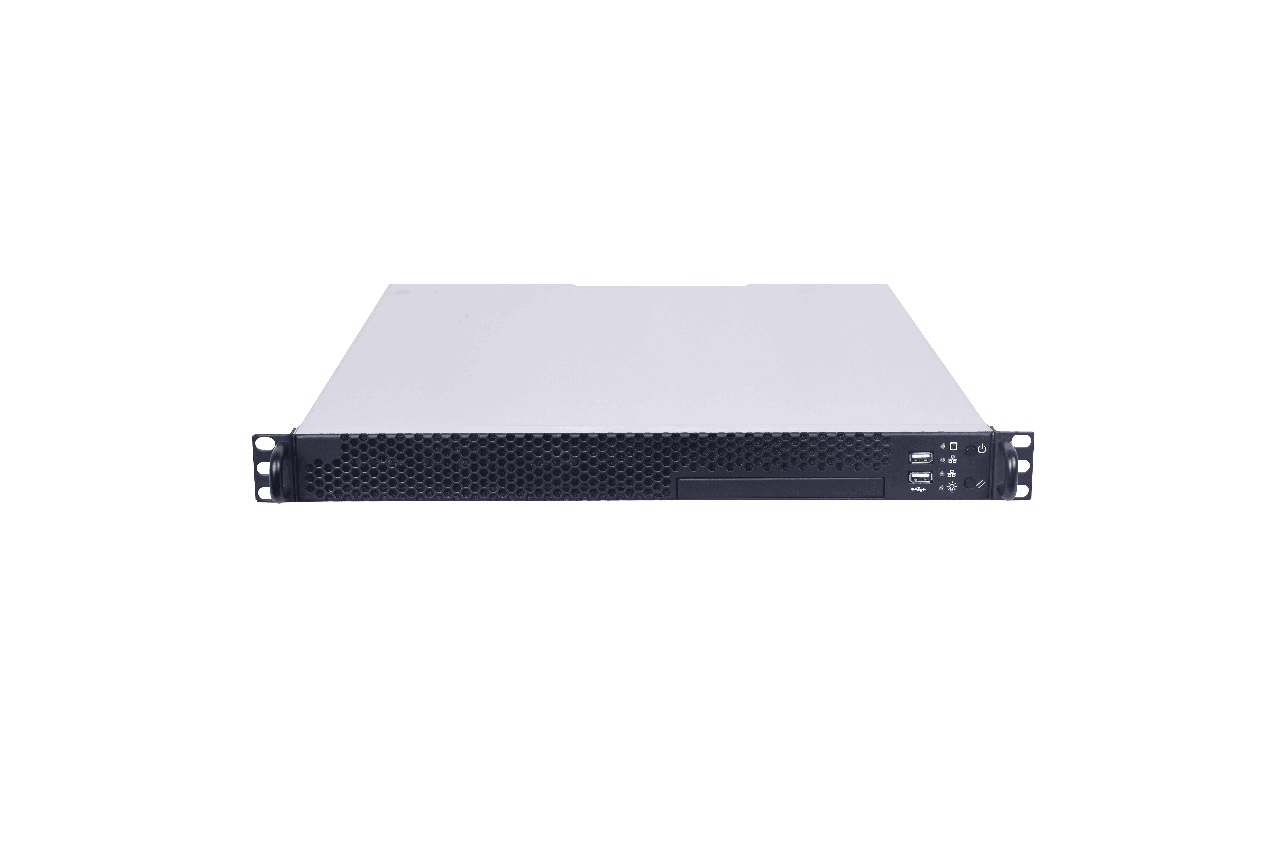

Management machine BCN-CVR1001P
Product features High-performance X86 hardware platform, stable and reliable Software factory pre-installed, All-in-One simplified deployment Supports access to the entire series of products and mainstream manufacturers, supports ONVIF pro
Details

Management machine BCN-CVR1001P


Product features
High-performance X86 hardware platform, stable and reliable
Software factory pre-installed, All-in-One simplified deployment
Supports access to the entire series of products and mainstream manufacturers, supports ONVIF protocol access
Support devices actively report
support IP, IP segment , domain name and serial number added
Support device automatic search discovery and quick add
Support standard, monospace and custom segmentation preview, support for instant playback and alarm preview
Support corridor mode, support fisheye
support PTZ direction, focus control, support presets And cruise route settings and calls
Support voice monitoring, voice intercom and voice broadcast
Support device and central storage video retrieval, playback and download
Support for recording, playback and playback by time, channel, event, label
Support time slice playback
support video clip backup Support time and event backup
Support IPC SD card video retrieval, playback and download
Support multi-level picture and online electronic map
Support video wall management, support splicing, windowing, roaming and alarm on the wall, support plan and channel group polling
support rich type of alarm and interlock operation
support grade Sub-area and multi-user rights management
support log management, support offline state advertisement and alarm devices and nodes on the
support overload client
supports SDK / OCX development kit, for the client application integration
support GB / T 28181-2011, DB31 / T 889- 2015, DB33/T 629-2011 protocol
Supports alarm host, access control/attendance, dynamic ring monitoring, one-button alarm system access
Support Android/iOS version of mobile client
technical parameters
Main processor Intel Xeon Processor E3-1225V5 4C/4T 3.3GHz 8M HD Graphics P530/80W
operating system Windows Server 2008 / Linux server system
RAM 8GB DDR4 ECC, up to 64GB
Network card 1 X Dual/Gigabit Copper/I350-T2 + Integrated InteI210-AT Dual Gigabit Fast Ethernet Server Card
hard disk 1 X Kingston SSD/120G/SATA/6Gb/s/2.5 inch/SUV400S37, support 3 non-hot swap 3.5/2.5 inch hard drives
PCI expansion slot 1*PCI-E3.0*8; 1*PCI-E3.0*8(X4); 1*PCI-E3.0*16(X8);
management Integrated BMC module, support IPMI2.0, provide a 10/100 Mbps RJ45 management network port, integrate KVM, support remote management
External device interface 1 VGA display interface, 6 USB ports (front panel 2xUSB2.0, rear panel 2xUSB2.0 and 2xUSB3.0), 4 network interfaces, 1 COM, 1 remote management port, 5.1 channel interface
Maximum number of management channels 30000 road
Maximum number of managed NVRs 1024 sets
Maximum number of management decoding channels 256 roads
Maximum number of managed streaming servers 32 units
Maximum number of managed streaming media storage 128 units
Device group stand by
Maximum number of users 1024
Number of concurrent online users 256
User rights Users assign permissions by role
Live preview Maximum 100 real-time preview, support for polling
PTZ control Support PTZ control, PTZ permissions, PTZ lock, PTZ preset management
Storage method Support IP SAN/streaming storage
Video mode Scheduled recording, manual recording, alarm recording
Video search Support multi-channel synchronous retrieval playback
Access streaming media bandwidth 600Mbps
Output streaming bandwidth 600Mbps (local preview + forwarding)
power supply 100~240V-6~3A /50~60Hz
power ≤300W (including hard disk)
Working temperature Operating from 10°C to 35°C, non-operating –40°C to +70°C ambient
Relative humidity 95% non-operating, non-condensing at 25 ° C to 30 ° C
noise In the operation mode, the sound pressure is measured at the lateral position <50dBA; when the ambient temperature is <28°C, the measured sound intensity is 6.2BA.
weight About 12KG (standard / gross weight)
Size (mm) 430 x 487 x 44 (Wx Dx H)
Installation method Standard 19" rack mount
