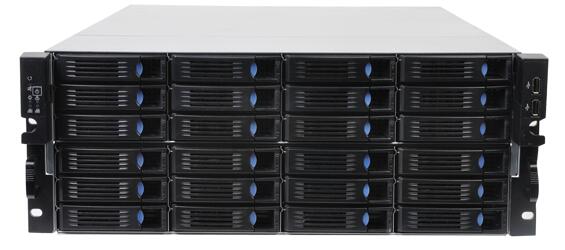

24-disc storage server BCN-SNVR6024P


 Product features
high performance
Integrated Intel Xeon E3-1220V5 high-performance multi-core processor, data transfer rate up to 8GT / s, support 64-bit expansion, I / O acceleration, Turbo, Hyper-Threading technology
4 memory slots, maximum support 64GB DDR4-1866/2133MHz ECC memory
Standard 2 Gigabit Ethernet ports, support I/OA technology, support link aggregation and binding redundancy; 1 independent IPMI interface, support iKVM
host configuration 12Gbps SAS Expander backplane, With a 12Gbps RAID card, it supports RAID 0/1/5 level.
High reliability
Single machine supports up to 24 3.5-inch hot-swappable SATA hard drives, built-in 2 2.5'' non-hot-swappable hard drives, up to 192TB
system with 3 control slots: 1*PCI-E3.0x16(x8); *PCI-E3.0x8; 1*PCE-E3.0x8 (x4) expansion slot, providing users with sufficient expansion space
800W 1+1 redundant power supply, improving system redundancy, security,
easy management,
comprehensive monitoring storage device The connection status, network status, hardware status, etc., can determine the equipment fault level according to the buzzer sound; and record the event information and operation log of the equipment in real time, providing a more comprehensive real-time monitoring and alarm solution for equipment operation.
Independent IPMI interface, iKVM support, support for remote switching machine, install the software and other services
provided by the host TPM interface, support for TPM (Trusted Platform Module) security chip standard, it can effectively protect the device to prevent unauthorized users from accessing
inside Embedded device access and streaming media forwarding module, no need to configure additional streaming media server
Streaming media service does not depend on the platform, even if the platform server network is interrupted, it will not cause video interruption
technical parameters.
category description
CPU Intel Xeon Processor E3-1220V5 4C/4T 3.0GHz 8M/80W
chipset Intel C232 chipset
operating system Embedded Linux operating system
RAM 8GB DDR4 ECC, up to 64GB DDR4-1866/2133MHz ECC memory
hard disk Support 24 3.5-inch SATA hot-swappable hard drives; built-in 2*2.5 SATA non-hot swappable hard drive
Hard disk specification Enterprise SATA, monitor SATA
Hard disk installation Independent hard drive bracket, support hot swap
capacity Single cabinet supports 192TB
RAID Hard RAID, support RAID 0, 1, 5
Expansion slot 1*PCI-E3.0x16(x8); 1*PCI-E3.0x8; 1*PCE-E3.0x8(x4)
Network card Integrated I210-AT dual Gigabit server NIC to support load balancing and failure replacement
IPMI ASPEED AST2400 BMC, independent IPMI interface, supports iKVM
Display controller Integrated display controller
Streaming media protocol Supports audio and video streaming to front-end IPC via TCP / UDP / RTSP streaming protocol
Index method Set the built-in index to the nearest second
performance Supports up to 740Mbps access and storage
support up to 540Mbps access, 540Mbps storage, 100Mbps playback
support up to 560Mbps access, 560Mbps storage, 120Mbps preview
Management method WEB management interface, seamless integration with NVMS platform
Management function RAID management, recording management, system log, alarm processing
Safety Provide TPM interface to support installation of TPM module
External device port 1*VGA, 6*USB (4, 2), 2*RJ45, 1*IPMI, 1* serial port (asynchronous-232C 9-pin port)
power supply 800W 1+1 redundant power supply, 100~240V-10~5A /50~60Hz
Ambient temperature Operating time 10 ° C to 35 ° C non-operating -40 ° C to +55 ° C ambient
Relative humidity Maximum relative humidity at work 90% RH (35 ° C)
noise In the operating mode, the sound pressure is measured at the lateral position <50Dba
Electrostatic discharge Each Intel ambient temperature test specification 15KV
