48-disc storage server BCN-SNVR6048
Product Features The TD-S348E is a 48-bay IP-SAN/NAS storage system with extensive data storage and management capabilities. Adopt advanced design concepts and architecture, integrate advanced SAS, multi-core processor, multi-protocol supp
Details

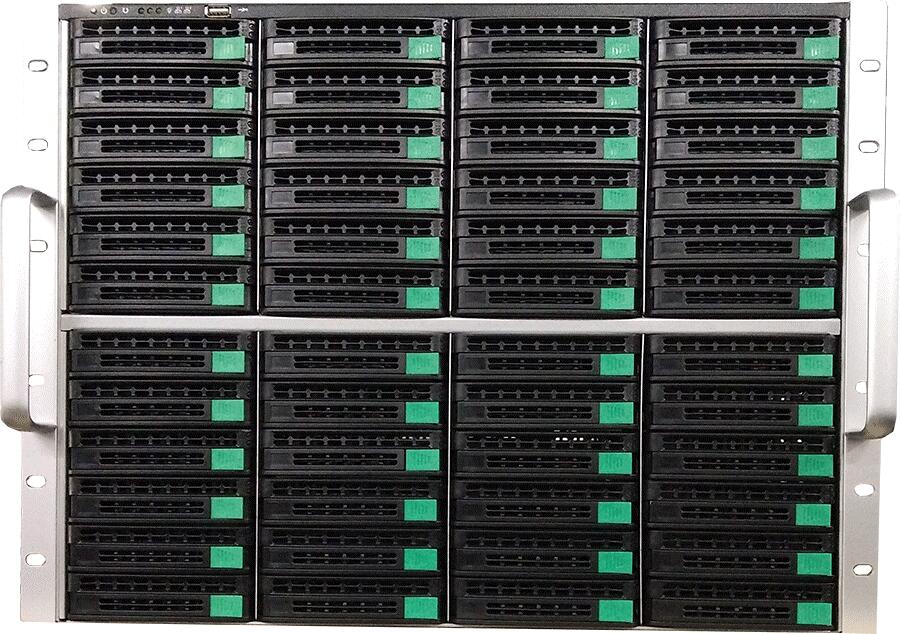

48-disc storage server BCN-SNVR6048


 Product Features The
TD-S348E is a 48-bay IP-SAN/NAS storage system with extensive data storage and management capabilities. Adopt advanced design concepts and architecture, integrate advanced SAS, multi-core processor, multi-protocol support and other advanced data processing and transmission technologies to ensure high availability, high performance and powerful expansion capabilities of the system; Convenient, stable and reliable, large capacity, and cost-effective, it can easily meet the needs of monitoring massive data storage.
Simple installation and maintenance, seamless integration with the platform.
Adopt X86 server architecture to ensure the stability of massive data processing.
Pure hardware RAID design, high performance and high reliability.
Support dual Gigabit Ethernet ports, support independent work and dual network port binding.
Unique anti-shock fan design, reduce the resonance between the fan and the hard disk, does not affect the hard disk I / O speed
Support redundant power supply, fully guarantee the normal operation of the system
Support a variety of read and write modes (block devices, files);
support a multi-mode, support Streaming media storage / NAS / IPSAN working mode
Support Raid0, Raid1, Raid5
device built-in index, retrieval accuracy and performance are up to second level
embedded media access and forwarding, no need to external streaming media server can work, reduce streaming media server The cost of the
streaming media service does not depend on the platform, even if the platform server network is interrupted, it will not cause video interruption.
Provide Web-based configuration management interface, greatly reducing the operational difficulty
technical parameters.
model BCN-SNVR6048
Main processor  Intel high performance multicore 64-bit processor
operating system Embedded Linux operating system
power supply  1 + 1 redundant power supply, hot swappable
fan 3 groups of 12038 large wind and low speed fans, support online replacement
cache Standard 4GB, expandable
Network Interface Two Gigabit Ethernet ports are standard, which supports network port binding and load sharing.
Number of hard disk channels  48 SATA hard drives, up to 6TB
Hard disk channel rate 6 Gbps
Hard disk installation Independent hard drive bracket, support hot swap
RAID level RAID 0/1/5, support HotSpare online expansion
RAID mode  Hard RAID
Expansion cabinet  not support
Expansion cabinet interface not support
Streaming media protocol  Supports audio and video streaming to front-end IPC via TCP / UDP / RTSP streaming protocol
Index method Set the built-in index to the nearest second
performance When only used for storage recording, the maximum storage traffic can reach 960Mb;
When forwarding the device + storage video at the same time, the maximum can forward and store the recording 760Mb;
Simultaneous forwarding, storage recording + monitoring client playback on-demand, the maximum can forward 420Mb + storage 420Mb + playback on-demand 96Mb
Management method  WEB management interface for seamless integration with the NVMS5000 platform
Management function RAID management, recording management, system log, alarm processing
letter of agreement Support device discovery protocol, support API mode and platform communication, support streaming media retrieval and transmission protocol
Platform management Support API mode to interface with third-party platforms
power supply AC 100 ~ 240V, 47 ~ 63HZ
power ≤ 1200W (including hard disk)
Working temperature  0 ~ 40 °C
Working environment humidity  5% ~ 95% (non-condensing)
Size ( mm )  440 ( W ) x 650 ( D ) x 352 ( H )
Installation method  Standard 19" rack mount
