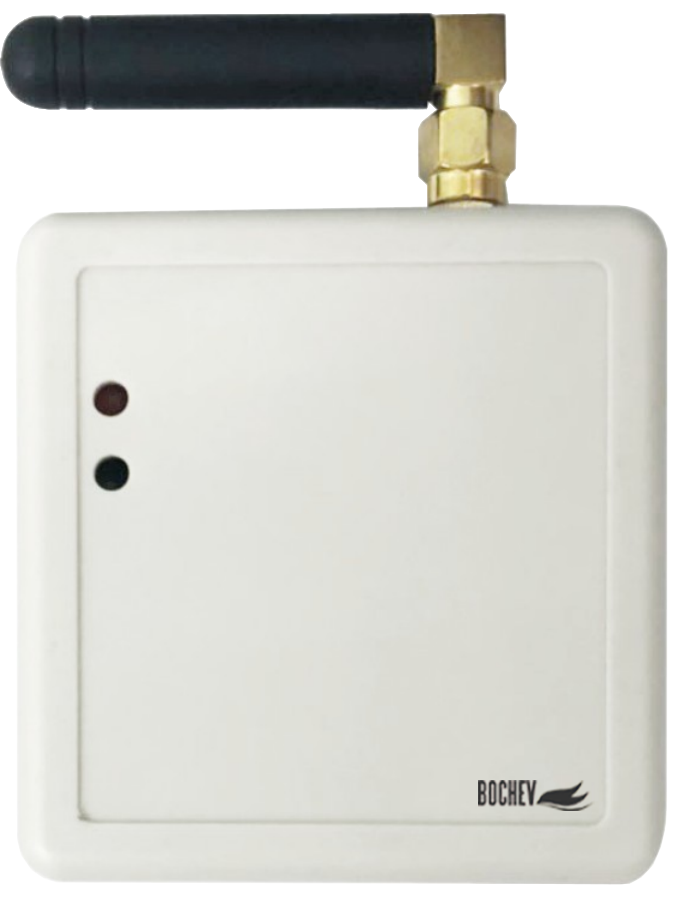

Bluetooth gateway bci-ngw03 /BL/LR

Product overview

BLE and LoRa technology based design.BLE gateway scans BLE beacon signal and reports it to LoRa gateway.Parameter setting, such as heartbeat cycle, LoRa working mode can adjust insufficient resources according to customer requirements.

Product features

LoRaWAN 1.02 compatible

1200 mah lithium ion battery power failure protection

Multi-battery optimization Settings

Product specification

Location mode: bluetooth

Scanning range: 20 meters

Protocol: LoRaWan

Frequency: 470MHz 4A2 group

Sensitivity: -142.5dbm

Maximum working current: 140mA (@20dbm)

Standby current in sleep mode: 40uA

Power supply: 1200 mah Li - Po

Working temperature: 5 ~ + 70 ℃

Storage temperature: - 40 ~ + 85 ℃

Working humidity: 5% ~ 95%

Built-in battery :1200mAh li-po

Size: 58 * 60 * 28mm

Charging voltage: DC 5V

Urban communication distance: > 1.5km
